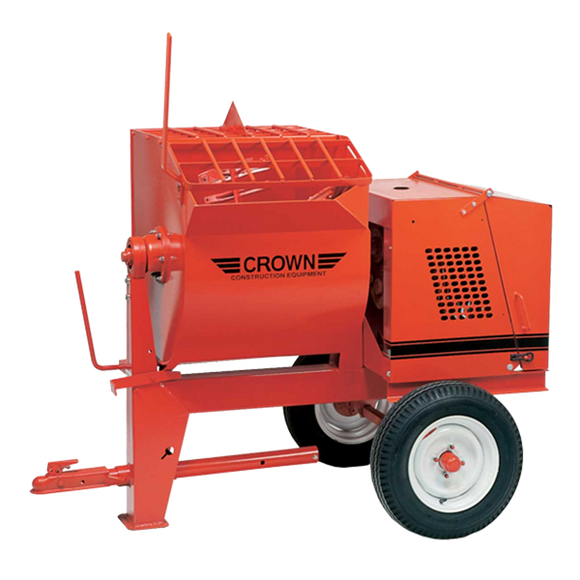

Mortar Mixer 8 cu ft steel drum spiral blades special order

Crown uses the heaviest solid steel paddle shaft in the industry. Crown's ductile iron paddles are stronger than welded steel making them the industry's most durable.
Every detail counts, like our two-piece safety grill which is stronger, safer, easier to use than a one-piece grill, and will not damage the drum.

 All Crown mixers feature a lifetime warranty on drum bearings and seals.

 Crown positions the dump and clutch levers at the front of the mixer for safe and efficient use.

 Crown's self latching drum lock is knee operated, freeing both hands for optimal dumping control.

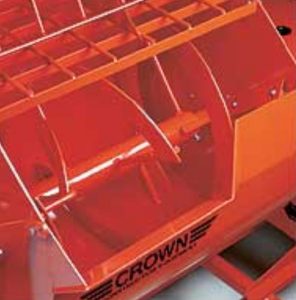

 This special order mixer uses a steel thickness of 6.35mm (1/4") for the drum, drum walls and spiral mixing paddles in order to extend the life of the mixer.

 Crown's exclusive Shear Pin Protection System shields the gear reducer and engine from potential damage should and engaged mixer be impeded by a shovel or other foreign object.

 Standard raised frame construction allows for convenient dumping to a wheel barrow. (Standard on all mixers 6SR and larger)

 All towable models come standard with high speed taper roller bearings and heavy duty axles for years of trouble free towing.

 Crown's innovative optional rubber torsion suspension system provides the industry's smoothest towing and handling. (Standard on 12S and 16S)

 Crown's rugged tow pole is retractable or removable and easily stows away when not in use for safer operation. (Comes with standard pintle hitch, ball hitch optional)

 Safety Chains come standard on all highway towable machines - Optional on 4S and 6S models

 ALL CROWN 25 to 1 ratio GEAR REDUCERS COME WITH OUR EXCLUSIVE FIVE-YEAR LIMITED WARRANTY.

 Specifications:
 Bag Capacity 2.5 - 3

 Cubic Feet 8

 Overall Height 57.75"

 Overall Width 45"

 Charging Height 59.75"

 Overall Length 71" (Tow Pole In)

                      91" (Tow Pole Out)

 Tires (Pneumatic) 5.3 x 12

 Highway Towable Yes

Shipping dimensions on a skid 66" x 45" x 67" 873 LB

All models with a larger than 1.5 electric motor do not include any electrical wiring from the motor, do not include a male electrical plug, and do not include an on/off switch. These items are the responsibility of the purchaser to have installed by a professional electrician as per local code.

Download a parts diagram here.
