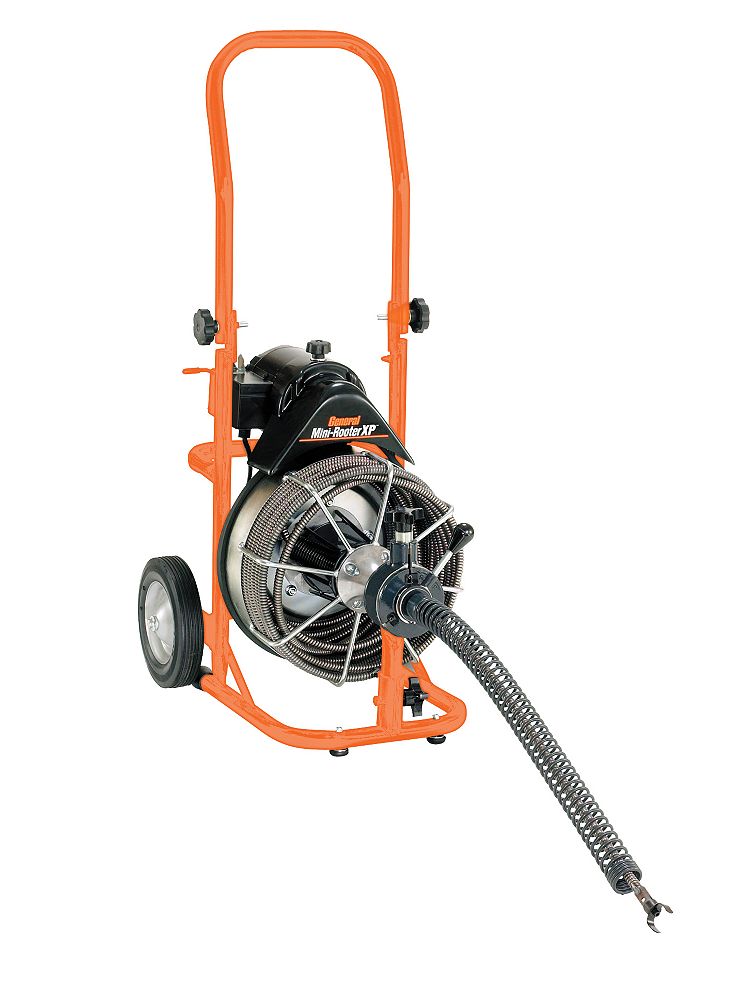

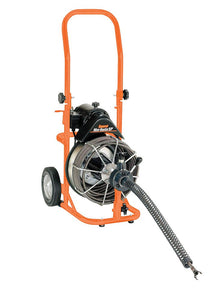

Drain cleaner Auto-Feed for 2" to 4" lines Mini-Rooter XP
Product Code:
- please contact us for pricing
The Mini-Rooter XP with MRCS cutter set gives you extra portability because 8″ semi- pneumatic wheels let you keep the weight on the ground. The handle folds down to save space and locks to use as an additional lifting handle. A roll bar protects the 1/3 hp motor when going up or down stairs. And the power cord and foot pedal can be stowed away on convenient cord wraps.
The Mini-Rooter XP gives you extra performance and value, enabling you to clear clogged drain lines from 1-1/4″ to 4″ in diameter with just one machine. The variable speed Power Cable Feed makes a lot of tough jobs go much easier. It feeds or retrieves the cable at up to 16 feet per minute.
The cage easily holds 75 ft of 3/8″ cable and 50 ft. of 1/2″ cable and features a free floating inner drum with an integral distributor tube to help prevent cable tangling. By switching to the optional J-Drum you can handle smaller drain lines. The drum is a snap to remove, taking less than a minute.
FEATURES
- Clears 1-1/4″ to 3″ lines and most 4″ lines up to 75 ft.
- Holds 75 ft. of 3/8″ or 50 ft. of 1/2″ Flexicore®
- Power Cable Feed drives and retrieves cable.
- Guide Tube reduces cable drag and keeps hands of off rotating cable.
- Safety slip clutch protects cable and operator.
- Open cage lets you see cable condition after each rental.
- Inner drum cage to prevent cable tangling under load.
- Rolls on 8″ wheels; handle folds for compact storage.
- Cage removes in seconds for more portability.
- 1/3 hp motor with momentary contact reverse switch and pneumatic foot pedal.
- Made in U.S.A.
Power Cable Feed
A variable speed power cable feed attachment makes feeding and retrieving the cable much easier. It quickly adjusts between 3/8″ and 1/2″ cables without the need for tools or additional parts. It makes a lot of tough jobs go much easier.
Even with the power cable feed, the drum is a snap to remove, taking less than a minute. Of course, the XP comes with an air foot pedal and ground fault circuit interrupter for safety, and General’s patented Flexicore wire rope center cable for durability.
Folding Handle
The handle is tall enough to make it easy to move the machine to the job, yet it can be quickly folded to take up less room in the vehicle.
Removable Drum
You can take the drum off the Mini-Rooter in seconds.
Reverse Switch
A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.
Safety Slip Clutch
Reduces chance of cable tangling or injury to the operator. Allows V-belt to slip through pulley until torque is reduced.
Flexicore® Cable
Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.
Flexicore® Patent Nos.
2,244,735 and 2,849,870
OPTIONS
J-Drum
With a J-Drum (optional), you’re ready for small drain work in seconds. Equipped with a Quick-Grip™ chuck. Will hold any Super-Vee cable. (Catalog Number MR-250)
Snake-Oil Classic™
A great way to extend the life of drain cleaning tools & equipment
Snake-Oil Classic™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.
Quick-Fix™
General Pipe Cleaners’ Quick-Fix™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.
The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.
ClogChopper®
Rip through tough stoppages with the unique ClogChopper® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.
The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.
CUTTER SET
AH Arrow Head Starting Drill (Gets water flowing)
1-1/2UC 1-1/2” U-Cutter For cutting and scraping
2SCB 2” Side Cutter Blades For cutting and scraping
BG Boring Gimlet For removing loose objects
MINI-ROOTER XP UNITS FOR THE RENTAL INDUSRY - COMPLETE AND READY TO OPERATE
| Item # | Catalog # | Description | Weight | |
|---|---|---|---|---|
| 110480 | P-XP-C-O |
Mini-Rooter XP with 50EM3 (50 ft. x 1/2”) Cable, and MRCS Cutter Set |
92 lbs |
CUTTER SET
| Item # | Catalog # | Description | Weight | |
|---|---|---|---|---|
| 130050 | MRCS |
Mini-Rooter Cutter Set (Includes Arrow Head, 1-1/2″ U-Cutter, 2″ Side Cutter Blade, Boring Gimlet) |
0.5 lbs |
|
REPLACEMENT CABLES
| Item # | Catalog # | Description | Weight | |
|---|---|---|---|---|
| 121030 | 50EM2 |
Flexicore Cable, 3/8″ x 50 ft. with Male & Female Connectors |
18 lbs |
|
| 121040 | 75EM2 |
Flexicore Cable, 3/8″ x 75 ft. with Male & Female Connectors |
25 lbs |
|
| 121070 | 50EM3 |
Flexicore Cable, 1/2″ x 50 ft. with Male & Female Connectors |
26 lbs |
|
| 121080 | 75EM3 |
Flexicore Cable, 1/2″ x 75 ft. with Male & Female Connectors |
43 lbs |
|
PARTS & ACCESSORIES
| Item # | Catalog # | Description | Weight | |
|---|---|---|---|---|
| 169125 | XP-200-O |
Mini-Rooter Drum |
8 lbs |
|
| 169465 | PO-XP |
Mini-Rooter XP Power Cable Feed |
11 lbs |
|
| 168435 | XP-GT |
Guide Tube for Mini-Rooter XP |
– |
|
| 136070 | MR-308-B |
Foot Pedal with Hose |
– |
|
| 136080 | MR-308-E |
Power Switch Diaphragm |
– |
|
| 136210 | MR-308-G-R |
Momentary Contact Reverse Switch |
– |
|
| 136010 | GFI-10 |
Ground Fault Circuit Interrupter with 10 ft. cord |
2 lbs |
|
| 136150 | PO-MR-703 |
Set of Feed Rollers (3) |
0.25 lbs |
|
| 136180 | MR-303-1 |
Safety Clutch |
1 lb |
|
| 130410 | LG |
Leather Gloves |
1 lb |
|
| 128810 | 1-1/2CG |
1-1/2” ClogChopper |
1 lb |
|
| 128820 | 2CG |
2” ClogChopper |
1 lb |
|
| 130855 | 1/2QF |
1/2” Quick-Fix |
1 lb |
|
| 440120 | SOQ |
1 Quart Snake-Oil Classic |
2 lbs |
|
| 440150 | SOG |
1 Gallon Snake-Oil Classic |
7.5 lbs |
|
SPECIFICATIONS
Weight: 67 lbs. (30 kg) with power feed and without cable.
Capacity: 75 ft. of 3/8″ or 1/2″ Flexicore Cable.
Dimensions: 24″ deep x 18″ wide x 38″ high with handle folded down (61 cm x 46 cm x 96 cm).
Drum: Equipped with inner drum cage and distributor tube to prevent cable tangling under load.
Quickly removable from frame. Available in open or closed design.
Wheels: 8″ semi-pneumatic tires with oilite bronze bushings.
Folding Handle: Reduces storage space.
Motor: 1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Momentary Contact Reverse Switch.
Belt Guard: High impact plastic, secured with knob.
Power Cable Feed: Drives 1/2″ and 3/8″ cables.
Cable Guide Tube: Keeps operators hands clean and off spinning cable. 5 ft. extensions available.
Foot Pedal: Leaves operator’s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.
Power Cord: 10 ft. 3 wire. in-line ground fault circuit interrupter.
Leather Gloves: With double-reinforced palm for hand protection when guiding cable.
J-Drum: Capacity of 50 ft. of 1/4″ or 5/16″ Flexicore cable.
Cutter Set: Arrow Head, Boring Gimlet, 2″ Side Cutter Blade, 1-1/2″ U-Cutter
Instructional Video included.
