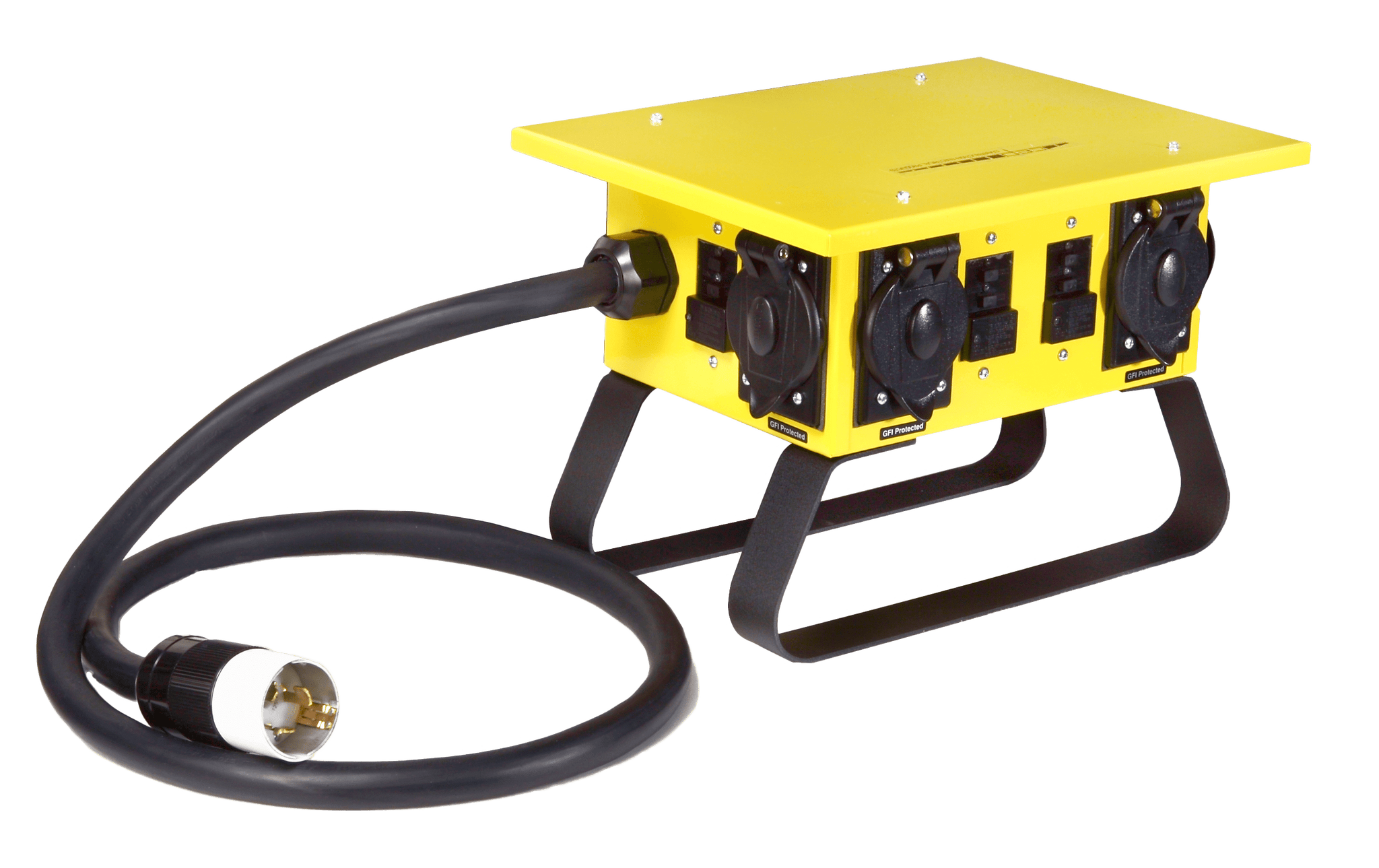

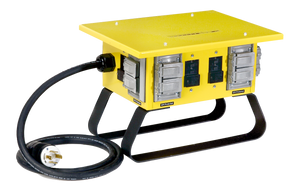

Power distribution box 30A 125/250V 4 Circuit Dead End

Product Code:
  • $647.14

This 4 Circuit Dead End portable power distribution center is engineered with the latest in GFCI technology, giving the user the highest level of electrical safety in open, neutral and reverse phasing protection. Each four-circuit power box is provided with four separate 20A 125V GFCI-protected circuits. Each circuit has its own breaker and GFCI device, offering two outlets per circuit. CSA approved. Made in the USA.
4 outlet 30 amp 125/250 volt
16 gauge steel or stainless steel construction
heavy duty impact & flame resistant covers
GFCI protection- open neutral, reverse phasing & 240 volt shut off with indicator light
Description: "GU" Series 30A GFCI Protected Boxes
Rating: 30A 125/250V

Outlet Type U-Ground
Outlet Description Classic 4 Outlet Duplex U-Ground
Power Input L14-30
Receptacles 4 x 5-20R, or 4 x L5-20R
AMPS 30 Amps
Size 21" x 14.5" x 11" LxWxH
GFI Specs 4-6 milliamp trip level, <25 milliseconds trip time
Construction 16 ga. Steel

6534UGSX is formerly CEP part # 6507GU

6534TLSX is formrly CEP part # 6507G

Weight: 30.0 lb
