Mortar Mixer 4 cubic feet NON TOWABLE with 25:1 ratio gear box with optional mixing blades

Product Code:
  • $4,466.67



Crown has earned a reputation for building the most dependable and safest mortar mixers on the market today. Designed to increase your productivity and reduce routine maintenance, Crow mixers have all the features you demand and the quality you expect. We back it up with a comprehensive warranty and unparalleled service at a price that makes Crown come out on top every time.

If you’re new to Crown mixers, give one a try. We’re sure you’ll appreciate the difference

  1. All crown mixers feature a lifetime warranty on drum bearings and seals.
  2. Crown positions the dump and clutch levers at the front of the mixer for safe and efficient use.
  3. Crown’s self-latching drum lock is knee operated, freeing both hands for optimal dumping control.
  4. Safety chains are optional on 4S and 6S Models.
  5. Crown’s tow pole is retractable or removable and easily stows away when not in use for safer operation.+
  6.  Crown’s newly  redesigned frame means improved durability and stronger support where you need it.

  7. Crown’s exclusive Shear Pin Protection System shields the gear reducer and engine from potential  damage should an engaged mixer be impeded by a shovel or other foreign object. Sturdy vented engine housing comes standard with a swing-away hood, providing easy engine access.Crown’s fixed engine mount design eliminates engine movement and bounce during transit, resulting in less wear and longer engine life.
  8. Crown utilizes heavy duty, 7 gauge steel for longer drum life.
  9. Crown uses the heaviest solid steel paddle shaft in the industry. Crown’s ductile iron paddles are stronger than welded steel making them the industry’s most durable. Every detail counts, like our two-piece safety grill which is stronger, safer, easier to use than a one-piece grill, and will not damage the drum.

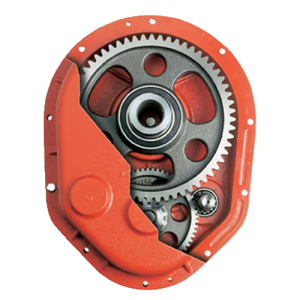

 ALL CROWN GEAR REDUCERS COME WITH OUR EXCLUSIVE FIVE-YEAR LIMITED WARRANTY.

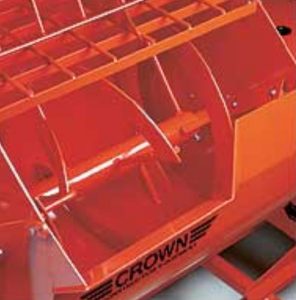

Optional Dual Spiral blades

Crown’s inner and outer spiral blades work like two augers to provide mixing on both the inside and outside radius, moving more material than traditional systems and providing increased air entrapment.

Discover the Optional Spiral Difference!

Crown’s spiral mixing system works like a spiral conveyor rapidly moving material across the drum providing a faster, more thorough mixture.

  • 30% faster mix
  • Less splash – reduces cleanup and increases capacity
  • No contact with the drum – reduces drum wear
  • No rubber blades – reduces maintenance
  • Perfect fort color additives and dry mixes



ALL CROWN GEAR REDUCERS COME WITH OUR EXCLUSIVE FIVE-YEAR LIMITED WARRANTY.

MODEL 4S
Bag Capacity 1 - 1.5

Cubic Feet 4

Overall Height 43"

Overall Width 28"

Charging Height 46"

Overall Length 62" (Tow Pole In)

                     N/A (Tow Pole Out)

Tires (Pneumatic) 4.8 x 8

Sprial Blade included: No

Weight - Max lbs 450

Download a parts diagram here.

Weight: 490.0 lb
